Readings:

Hobbs & Hooten 29-70

Stochasticity and uncertainty in ecological models

In each level of our models, we differentiate between:

• a deterministic model $\large g()$, and

• a stochastic model $\large [a|b,c]$



The deterministic portion of the model contains no uncertainty $^1$

Stochastic processes are different:

• given an input, the model will not always return the same answer

• the output of stochastic processes are uncertain

• Even though stochastic processes are inherently uncertain, they are not unpredictable.

Stochasticity and uncertainty in ecological models

In Bayesian models, all unobserved quantities are treated as a random variables, that is they can take on different values due to chance (i.e., stochastic)

Each random variable in our model is governed by a probability distribution $^2$

Our goal is to use our data to learn about those distributions

Probability

Uncertain events are not necessarily unpredictable

Probability allows us to summarize how likely each possible value of a random variable is to occur

Sample space

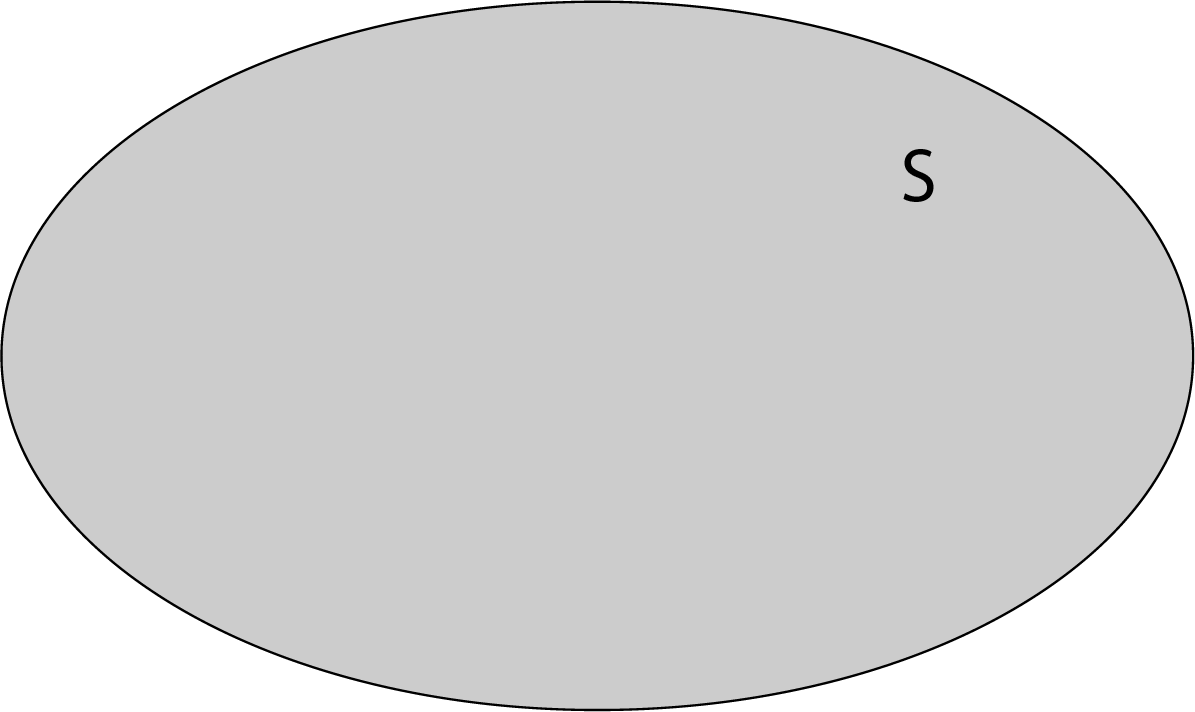

For any given random variable, the sample space $S$ includes all of the possible values the variable can take

For example, for an single-species occupancy model, $S$ would be present or absent. For a model of species abundance, $S$ would be ${0,1,2,3,...,\infty}$.

Sample space

Example

Imagine an occupancy model in which we want to know if species $\Large x$ is present at a given location

We will denote the occupancy status $\Large z_x$ and the sample space includes just two possible values:

$$\huge S_{z_x}=\{0, 1\}$$

Probability of single events

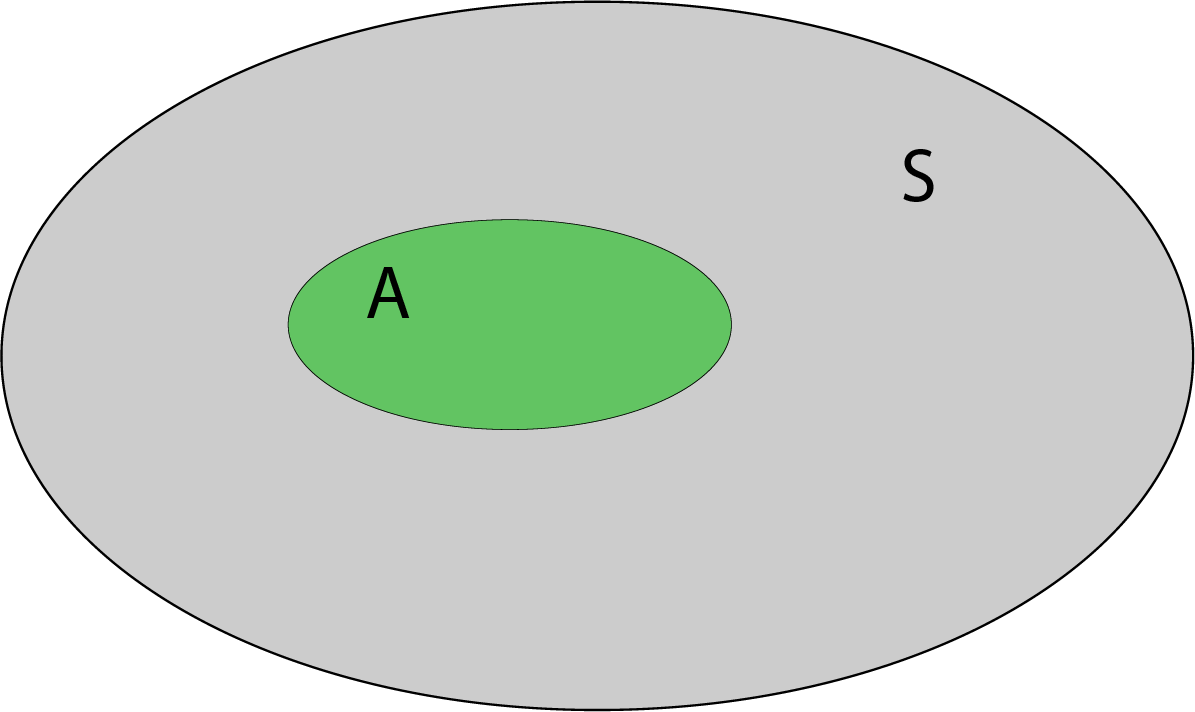

The probability of $\large A$ is the area of $\large A$ divided by the area of $\large S$ $^3$

$$\Large Pr(A) = \frac{area\; of\; A}{area\; of \;S}$$

Probability of single events

Example

In our example, let's say that the probability of occupancy for species $\large x$ is:

$$\LARGE Pr(z_x = 1) = 0.4$$

This means that the probability that the site in not occupied is:

$$\LARGE Pr(z_x = 0) =1-0.4=0.6$$

Probability of multiple events

Often, we are not interested in the probability of a single event happening but instead of more than one events

The joint probability refers to the probability that two or more events occur and is usually denoted $\large Pr(A,B)$ $^4$

Probability of multiple events

Example

To extend our simple example, let's imagine we are interested in the occupancy status of two species - $\large x$ and $\large y$. Our sample space is now:

$$\Large S_{z_x,z_y} = \{(0,0), (0,1), (1,0), (1,1)\}$$ The question we want to know now is: what is the probability that a site is occupied by both species:

$$\Large Pr(z_x = 1, z_y = 1) = Pr(z_x, z_y)$$
The answer to that question depends on the relationship between $\large Pr(z_x)$ and $\large Pr(z_y)$

Conditional probability

In some cases, knowing the status of one random variable tells us something about the status of another random variable

Let's say we know that species $\large x$ is present, that is $\large z_x=1$

Knowing that $\large z_x=1$ does two things:

1) It shrinks the possible range of sample space (if $\large z_x=1$ occurred, the remainder of our sample space (in this case $\large z_x=0$) did not occur)

2) It effectively shrinks the area $\large z_y$ - we know that the area of $\large z_y$ outside of $\large z_x$ didn't occur

You can see this very clearly in this awesome visualization

Conditional probability

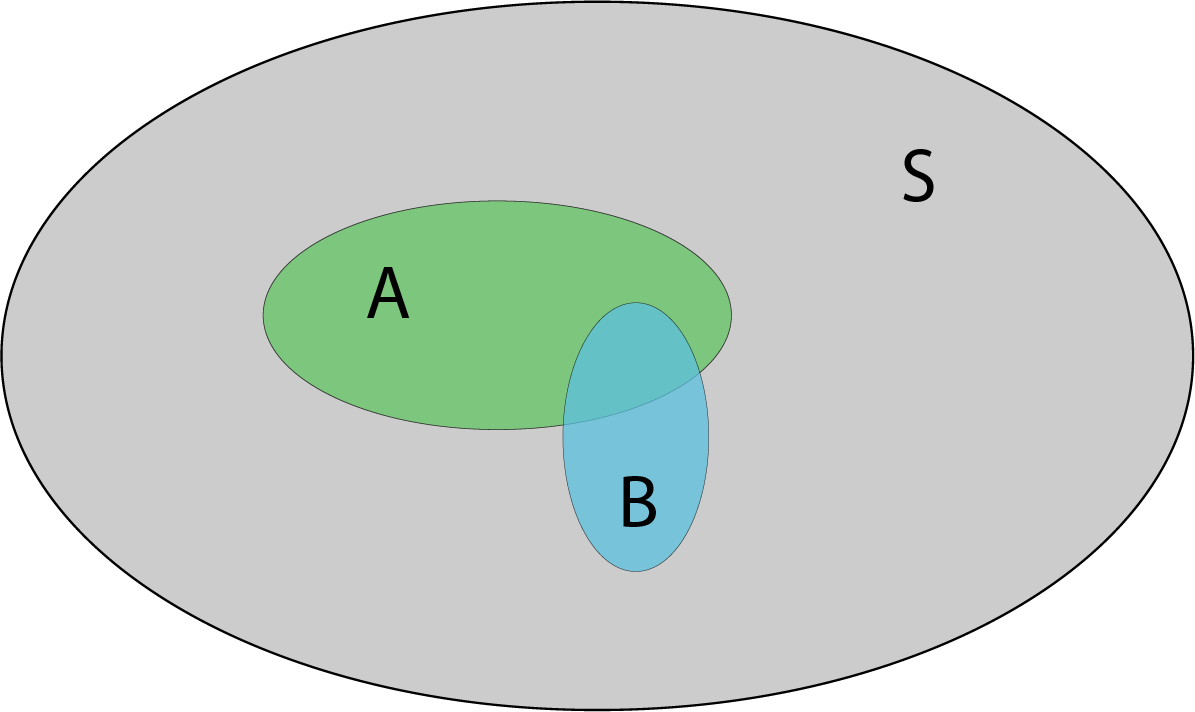

$\large Pr(z_y|z_x)$ is the area shared by the two events divided by the area of $\large z_x$ (not $\large S$!) $^5$

$$\large Pr(z_y|z_x) = \frac{area\; shared\; by\; z_x\; and\; z_y}{area\; of \;z_x} = \frac{Pr(z_x\; \cap\; z_y)}{Pr(z_x)}$$

likewise,

$$\large Pr(z_x|z_y) = \frac{Pr(z_x\; \cap\; z_y)}{Pr(z_y)}$$

Conditional probability

For conditional events, the joint probability is:

$$\LARGE Pr(z_y, z_x) = Pr(z_y|z_x)Pr(z_x) = Pr(z_x|z_y)Pr(z_y)$$

Probability of independent events

In some cases, the probability of one event occurring is independent of whether or not the other event occurs $^6$
In our example, the occupancy of the two species may be totally unrelated

• if they occur together, it happens by complete chance $^7$

In this case, knowing that $\large z_x=1$ gives us no new information about the probability of $\large z_y=1$

Mathematically, this means that:

$$\large Pr(z_y|z_x) = Pr(z_y)$$

and

$$\large Pr(z_x|z_y) = Pr(z_x)$$ Thus,

$$\large Pr(z_x,z_y) = Pr(z_x)Pr(z_y)$$

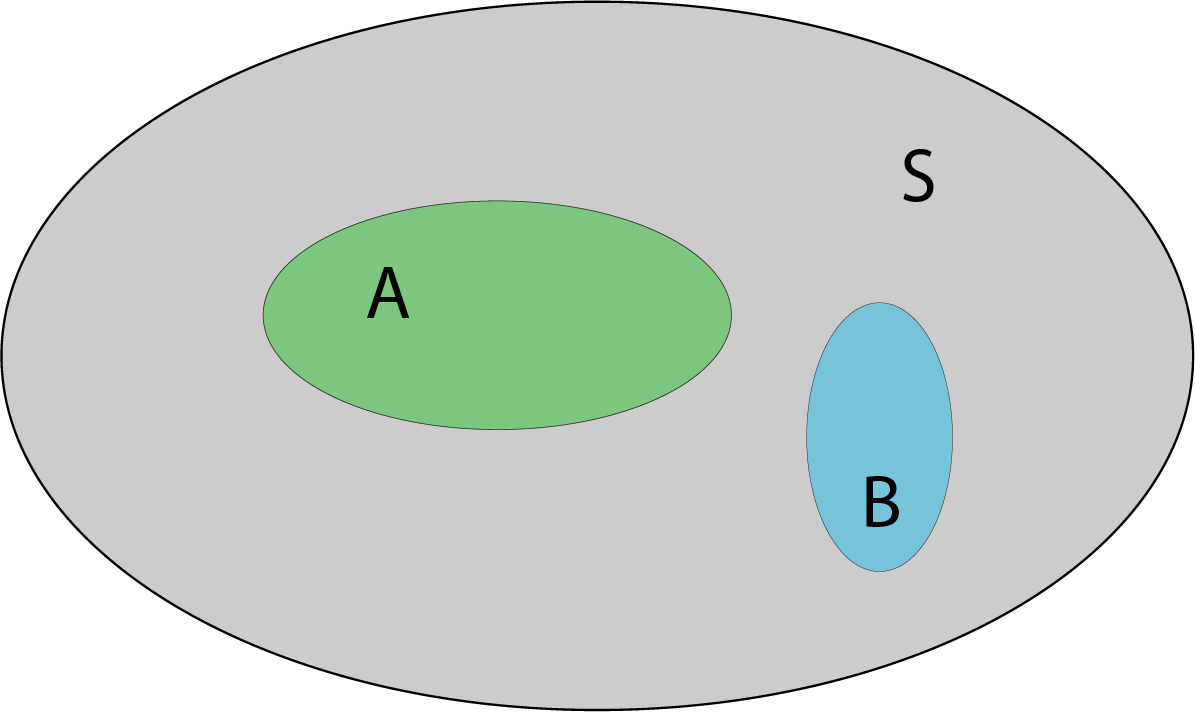

Disjoint events

A special case of conditional probability occurs when events are disjoint

In our example, maybe species $\large x$ and species $\large y$ never occur together $^8$

In this case, knowing that $\large z_x = 1$ means that $\large z_y = 0$. In other words,

$$\Large Pr(z_y|z_x) = Pr(z_x|z_y) = 0$$

Probability of one event or the other

In some cases, we might want to know the probability that one event or the other occurs

For example, what is the probability that species $\large x$ or species $\large y$ is present but not both?

This is the area in $\large z_x$ and $\large z_y$ not including the area of overlap:

$$\Large Pr(z_x \cup z_y) = Pr(z_x) + Pr(z_y) - Pr(z_x,z_y)$$

Probability of one event or the other

When $\large z_x$ and $\large z_y$ are independent,

$$\large Pr(z_x \cup z_y) = Pr(z_x) + Pr(z_y) - Pr(z_x)Pr(z_y)$$ If they are conditional,

$$Pr(z_x \cup z_y) = Pr(z_x) + Pr(z_y) - Pr(z_x|z_y)Pr(z_y) = Pr(z_x) + Pr(z_y) - Pr(z_y|z_x)Pr(z_x)$$ If they are disjoint,

$$\Large Pr(z_x \cup z_y) = Pr(z_x) + Pr(z_y)$$

Marginal probability

A critical concept in Bayesian models is marginal probability, that is the probability of one event happening regardless of the state of other events

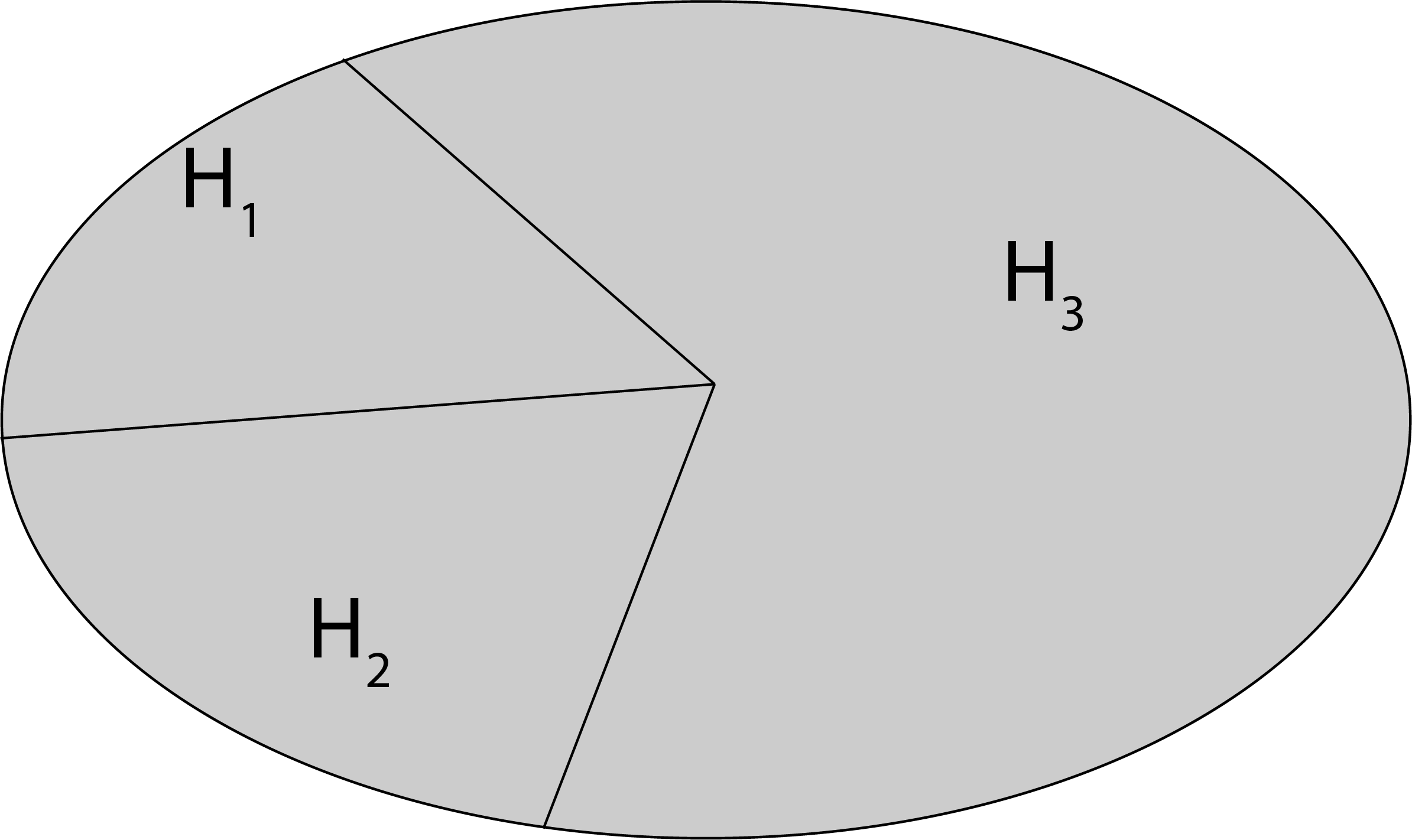

Imagine that our occupancy model includes the effect of 3 different habitats on the occupancy probability of species $\large x$, so:

$$\Large Pr(z_x|H_i) = \frac{Pr(z_x \cap H_i)}{Pr(H_i)}$$ What is the overall probability that species $\large x$ occurs regardless of habitat type? That is, $P\large r(z_x)$?

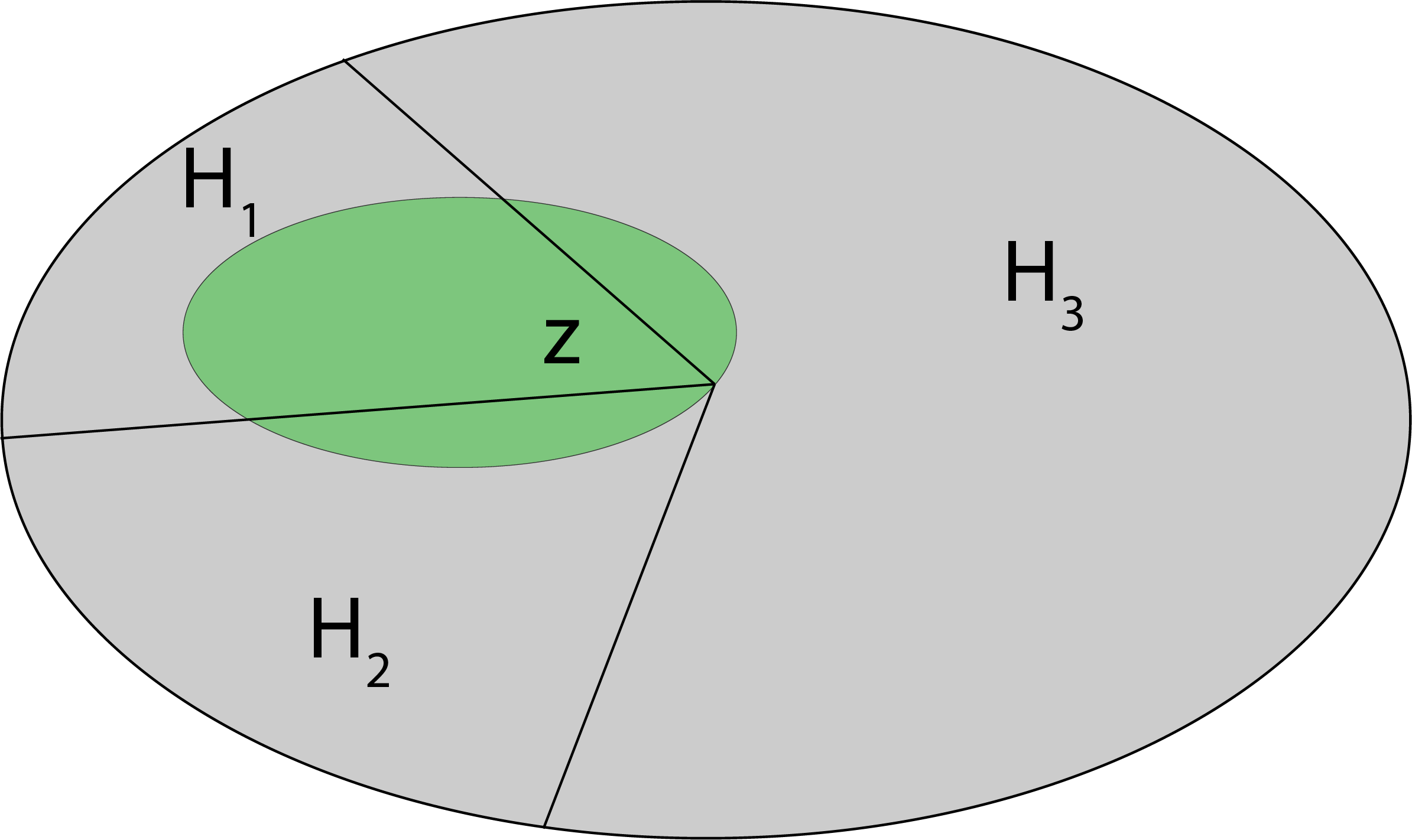

In this case, we marginalize over the different habitat types by summing the conditional probabilities weighted by probability of each $\large H_i$:

$$Pr(z_x) = \sum_{i=1}^3 Pr(z_x|H_i)Pr(H_i)$$ Think of this as a weighted average - the probability that $\large z_x=1$ in each habitat type weighted by the probability that each habitat type occurs.

Marginal probability

Marginal probability

Marginal probability

Factoring joint probabilities

Many of the models you will work with as an ecologist will contain multiple random variables

$$\bigg[z, \theta_p, \theta_o, \sigma^2_p, \sigma^2_s, \sigma^2_o, u_i\big|y_i\bigg] \propto [y_i|d(\Theta_o,u_i), \sigma^2_o][u_i|z, \sigma^2_s][z|g(\theta_p, x), \sigma^2_p][\theta_p][\theta_o][\sigma^2_p][\sigma^2_s][\sigma^2_o]$$ The rules of probability allow us to express the complex joint probabilities as a series of more simple conditional probabilities

• These concepts may feel a little abstract now but they will be very important when we learn about implementing Bayesian models

Determining the dependencies between parameters in the models is aided by Bayesian network models

Bayesian networks

Bayesian networks graphically display the dependence among random variables

• Random variables are nodes

• Arrows point from parents to children

Bayesian networks

Bayesian networks graphically display the dependence among random variables $^9$

• Children nodes are on the LHS of conditioning symbols

• Parent nodes are on the RHS of conditioning symbols

• Nodes without a parent are expressed unconditionally

$$\LARGE Pr(A, B) = Pr(A|B)Pr(B)$$

Bayesian networks

$$\Large Pr(A, B, C) = Pr(A|B,C)Pr(B|C)Pr(C)$$

Bayesian networks

$$\Large Pr(A, B, C, D) = Pr(A|C)Pr(B|C)Pr(C|D)Pr(D)$$

Bayesian networks

$$\Large Pr(A, B, C, D, E) = Pr(A|C)Pr(B|C)Pr(C|D, E)Pr(D)Pr(E)$$

Bayesian networks

$$\Large Pr(A, B, C, D) = Pr(A|B,C,D)Pr(B|C,D)Pr(C|D)Pr(D)$$

Bayesian networks

$$\Large Pr(A, B, C, D) = Pr(A|B,C,D)Pr(C|D)Pr(D)Pr(B)$$

Properties of probability distributions

Because all unobserved quantities are treated as random variables governed by probability distributions, using and understanding Bayesian methods requires understanding probability distributions.

As ecologists, there are a number of very common probability distributions that we encounter and use regularly $^{10}$:

• normal

• Poisson

• binomial

• gamma

Discrete vs. continuous distributions

Continuous random variables can take on an infinite number of values on a specific interval $^{11}$

• Normal $(-\infty$ to $\infty)$

• Gamma (0 to $\infty)$

• Beta (0 to 1)

• Uniform (? to ?)

Discrete random variables are those that take on distinct values, usually integers $^{12}$

• Poisson (integers $\geq 0)$

• Bernoulli (0 or 1)

• Binomial

• Multinomial

Probability functions

Very often we want to know the probability that a random variable will take a specific value $\large z$

Answering this question requires the use of probability functions, which we will denote $\large [z]^{13}$

Probability functions differ between continuous and discrete distributions so we will discuss these separately

Probability mass functions

For discrete random variables, the probability that the variable will take a specific value $\large z$ is defined by the probability mass function (pmf)

All pmf's share two properties:

$$\Large 0 \leq [z] \leq 1$$ $$\Large \sum_{z \in S}[z]=1$$

where $\large S$ is the set of all $\large z$ for which $\large [z] > 0$ (the range of possible values of $\large z$).

Probability mass functions

As an example, let's assume a random variable that follows a Poisson distribution

• Poisson random variables can take any integer value > 0 $\large (0, 1, 2,...)$

• e.g., the number of individuals at a site or the number of seeds produced by a flower

The shape of the Poisson distribution is determined by 1 parameter called $\large \lambda$

• $\large \lambda$ is the expected value (the most likely value) of a random variable generated from the Poisson distribution

• larger $\large \lambda$ means larger values of the variable

Probability mass functions

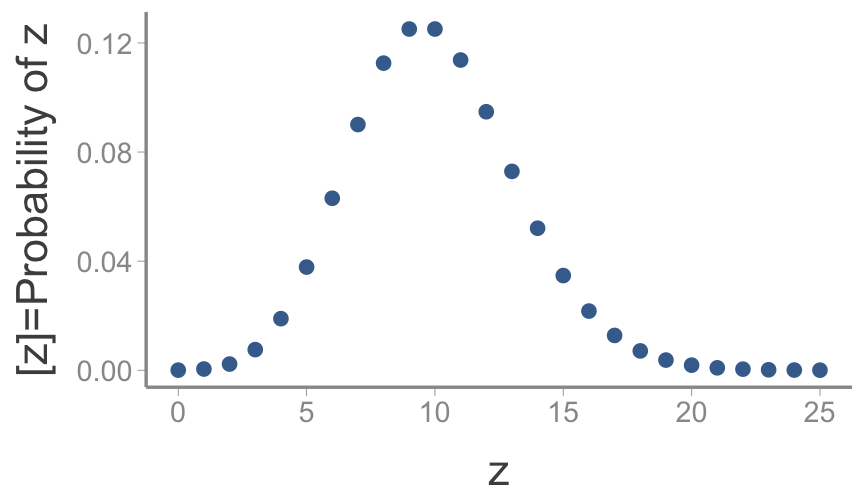

If $\large \lambda = 10$, what is the probability that $\large z$ will equal 10? Or 8? Or 15?

In R, probability mass is estimating using the dpois() function (or the equivalent for other discrete distributions)

• takes two arguments: the value we are interested in estimating the probability of $(z)^{14}$ and the expected value of our distribution $(\lambda)$

• dpois(x = seq(0,25), lambda = 10)

Probability density functions

Probability mass functions provide the probability that a discrete random variable takes on a specific value $\large z$

For continuous variables, estimating probabilities is a little trickier because $\large Pr(z) = 0$ for any specific value $\large z$

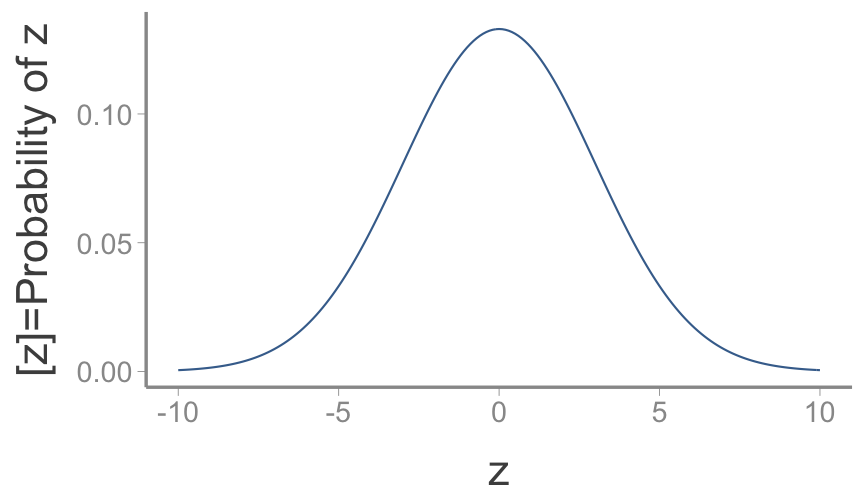

Why? Let's look at the probability distribution for a normal random variable with mean $\large =0$ and standard deviation $\large =3$:

Probability density functions

The probability density is the area under the curve for an interval between $\large a$ and $\large b$, which we'll call $\large \Delta_z$ $\large =(a-b)$.

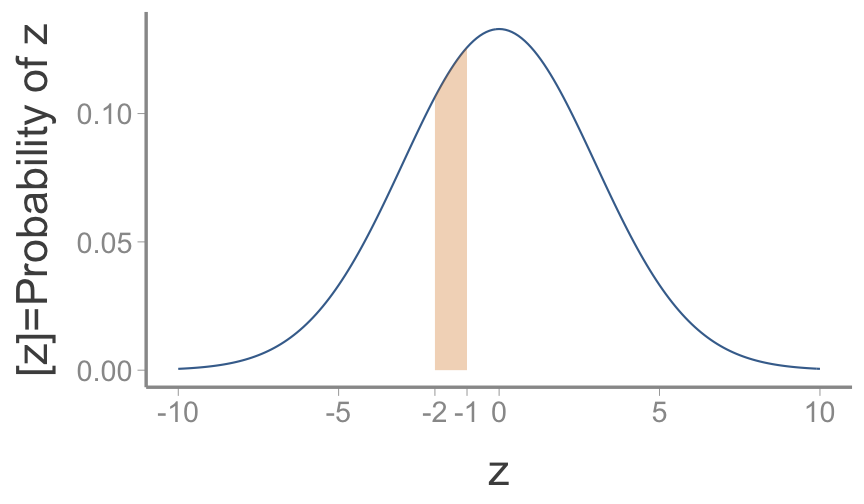

For example, the shaded area below shows the probability density $\large Pr(-2 \leq z \leq -1)$:

Probability density functions

This area can be approximated by multiplying the width times the (average) height of the rectangle:

$$\Large Pr(a \leq z \leq b) \approx \Delta_z [(a + b)/2]$$

By making the range $\Delta_z =a-b$ smaller and smaller, we get closer to $Pr(z)$:

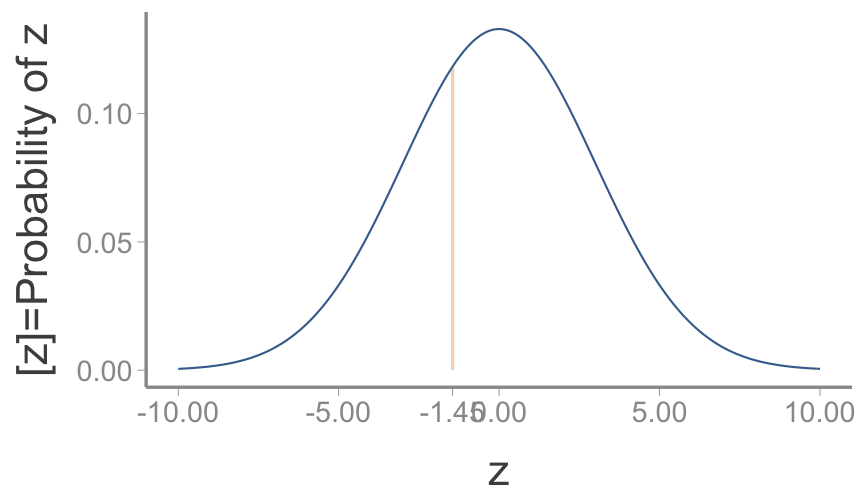

Probability density functions

At $\large z$, $\large \Delta_z =0$, thus $\large [z] = 0$

However, we can use calculus to estimate the height of the line $\large ([z])$ as $\large \Delta_z$ approaches 0

So for continuous random variables, the probability density of $\large z$ as the area under the curve between $\large a \leq z \leq b$ as $\large \Delta_z$ approaches zero

Estimating probability density in R is the same as for discrete variables: dnorm() $^{15}$

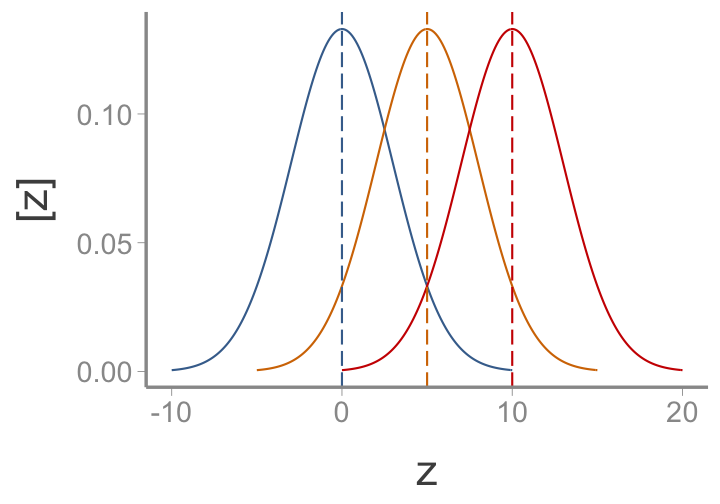

Moments

Every probability distribution we will use in the course can be described by its moments

• $1^{st}$ moment is the expected value (i.e., mean)

• $2^{nd}$ moment is the variance

Expected value (i.e., the mean)

The first moment of a distribution describes its central tendency (denoted $\large \mu$) or expected value (denoted $\large E(z)$)

This is the most probable value of $\large z$

Think of this as a weighted average - the mean of all possible values of $z$ weighted by the probability mass or density of each value $\large [z]$

For discrete variables, the first moment can be calculated as

$$\Large \mu = E(z) = \sum_{z \in S} z[z]$$

For continuous variables, we need to use an integral instead of a sum:

$$\Large \mu = E(z) = \int_{-\infty}^{\infty} z[z]dz$$

Variance

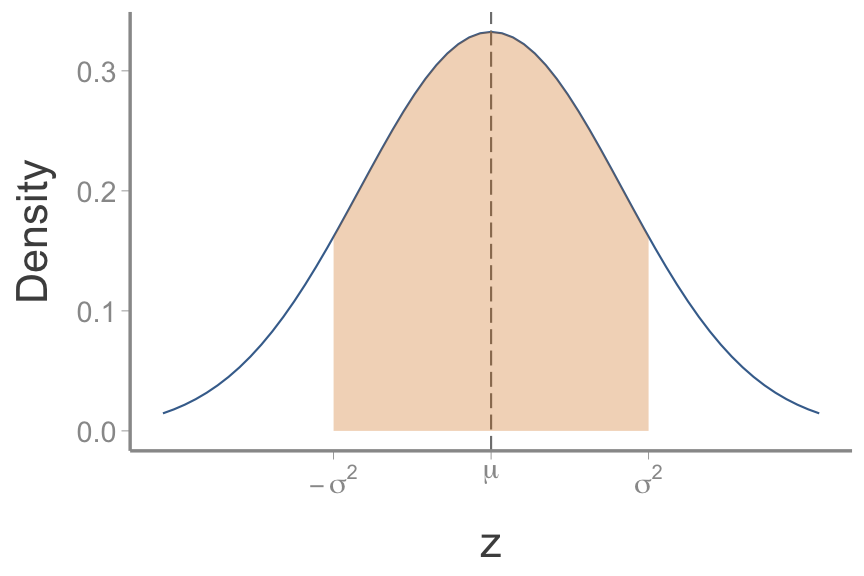

The second moment of a distribution describes the variance - that is, the spread of the distribution around its mean

On average how far is a random value drawn from the distribution from the mean of the distribution

For discrete variables, variance can be estimated as the weighted average of the squared difference (squared to prevent negative values) between each value $\large z$ and the mean $\large \mu$ of the distribution:

$$\Large \sigma^2 = E((z - \mu)^2) = \sum_{z \in S} (z - \mu)^2[z]$$

and for continuous variables:

$$\Large \sigma^2 = E((z - \mu)^2) = \int_{-\infty}^{\infty} (z - \mu)^2[z]dz$$

Exercise: Estimating moments using Monte Carlo integration $^{16}$

One way to estimate moments is by simulating a large number of values from a probability distribution and then using these samples to calculate the first and second moments $^{17}$

This approach is very easy to do in R using the r class of functions (e.g., rnorm(), rpois(), etc.)

• These functions generate specified number of random draws (r for random) from a given probability distribution

Exercise: Estimating moments using Monte Carlo integration

Let's estimate the first and second moments of a gamma distribution $^{18}$

The shape of the gamma distribution is governed by two parameters, $\large \alpha$ (referred to as the shape) and $\large \beta$ (referred to as the rate or sometimes the scale) $^{19}$

In R, we can generate and visualize a large number (e.g., 10000) random draws from the gamma distribution using the following code:

n <- 10000 # Sample size
samp <- rgamma(n, shape = 0.5, rate = 2)

Exercise: Estimating moments using Monte Carlo integration

Now let's use these sample to estimate the first moment (the mean) and the second moment (the variance) of the distribution

We estimate the first moment by taking the arithmetic mean of our samples $(\frac{1}{n}{\sum_{i=1}^{n}z_i})$ and the variance as $(\frac{1}{n}{\sum_{i=1}^{n}(z_i-\mu)^2})$:

mu <- sum(samp)/n # mean of the sample
sigma2 <- sum((samp - mu)^2)/n # variance of the sample

Exercise: Estimating moments using Monte Carlo integration

How close are these values to the true moments? For the gamma distribution: $$\Large \mu = \frac{\alpha}{\beta}$$

$$\Large \sigma^2 = \frac{\alpha}{\beta^2}$$

For our samples: $^1$

mu # Estimated mean

## [1] 0.2491

0.5/2 # True mean

## [1] 0.25

Exercise: Estimating moments using Monte Carlo integration

How close are these values to the true moments? For the gamma distribution: $$\Large \mu = \frac{\alpha}{\beta}$$

$$\Large \sigma^2 = \frac{\alpha}{\beta^2}$$

For our distribution:

sigma2 # Estimated variance

## [1] 0.1278

0.5/2^2

## [1] 0.125

Exercise: Estimating moments using Monte Carlo integration

Try this on your own - simulate data from a Poisson distribution and see if the moments you estimate from the sample are close to the true moments

Hint - the Poisson distribution has a single parameter $\lambda$, which is both the mean and the variance of the distribution

Change both $\large \lambda$ and $\large n$. Does varying these values change how well your sample estimates the moments? $^{20}$

Moment matching

What if you know the mean and variance of a distribution and need the parameters?

Rather than using simulation, each distribution has a set of formulas for converting between parameters and moments (called moment matching)

Moment matching is very important because often we have the mean and variance of distributions but need to convert those summaries into the parameters of the underlying distribution $^{21,22}$

Moment matching

For the normal distribution, it is relatively easy to understand moments because the parameters of the distribution (mean and standard deviation) are the first and second moments

Moment matching

The normal distribution has an interesting property - you can change the first moment without changing the second moment

This is not true of all probability distributions

For example, the beta distribution is a continuous distribution with values between 0 and 1 $^{23,24}$. Its first and second moments are:

$$\Large \mu = \frac{\alpha}{\alpha + \beta}$$

$$\Large \sigma^2 = \frac{\alpha\beta}{(\alpha + \beta)^2 (\alpha + \beta + 1)}$$

Moment matching

What is you know the mean of a beta distribution is 0.3 and the variance is 0.025? What are $\large \alpha$ and $\large \beta$?

$$\Large \alpha = \bigg(\frac{1-\mu}{\sigma^2}- \frac{1}{\mu} \bigg)\mu^2$$

$$\Large \beta = \alpha \bigg(\frac{1}{\mu}-1\bigg)$$ For our model, that means $^{25}$:

(alpha <- ( (1 - 0.3)/0.025 - (1/0.3) )*0.3^2)

## [1] 2.22

(beta <- alpha * ( (1/0.3) - 1))

## [1] 5.18
